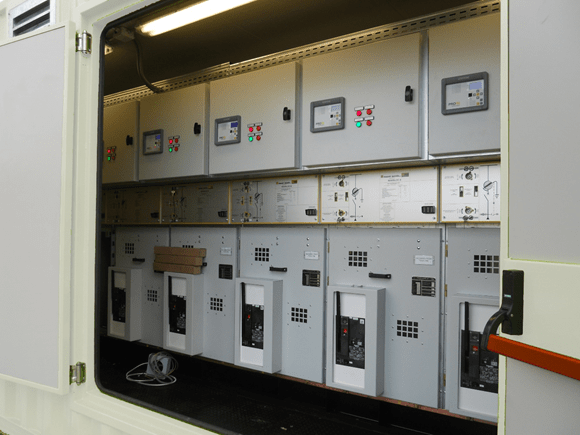

Medium Voltage Panels

These panels are installed in industrial plants, for the distribution of medium voltage electricity, they consist of modular compartments that can be coupled and used in transformer cabins for the control and protection of lines, transformers, motors, in the distribution of electricity, in electricity mains distribution companies and in industrial mains

Electrical characteristics:

•     Nominal voltage up to = 12 – 17.5 – 24 kV
•     Rated insulation voltage = 28 – 38 – 50 kV
•     Impulse withstand voltage = 75 – 95 – 125
•     Nominal frequency = 50 – 60Hz
•     Nominal currents of the main bars = 400 – 630 – 800 – 1250A
•     Rated thermal current of the switch-disconnectors = 400 – 630A
•     Nominal thermal current = 400 – 630 – 1250A
•     Rated short-time withstand current Ik (1s) = 12.5 -16 – 20 – 25 kA
•     Peak currents Ip = 31.5 – 40 – 50 – 62.5 kA
•     Internal arc withstand current for (1s) – (IAC AFLR on request)
•     Degree of protection with doors open IP20
•     Degree of protection with closed doors IP30
•     Accessibility from the front
•     Reference standards IEC 62271-200, CEI EN 62271-103, CEI EN 62271-1, CEI EN 62271-102 and CEI EN 62271-105

Areas:

• Production plants – Energy substations – Water treatment, Renewable Energy
• Petroleum industry, Oil & GAS – Metallurgy and Cement factories
• Hospital – Pharmaceutical
• Transportation (Airports, Metropolitan)
• Food
• Telecommunications, Datacenter

Available protection relays:

TYTRONIC – ABB – SCHNEIDER – GENERAL ELECTRIC

Switch disconnectors available:

ABB – SCHNEIDER – SIEMENS
