Power Technology

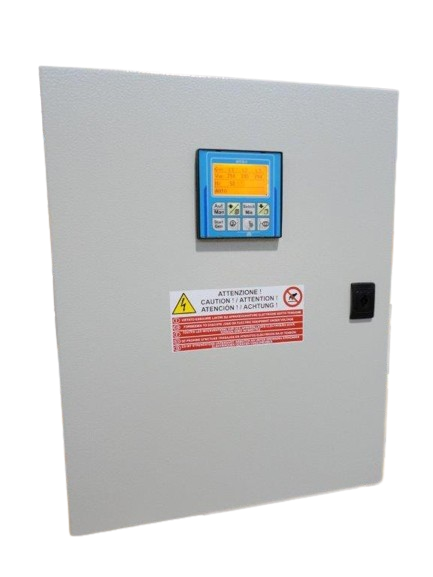

Autostart Panels
These panels are used for stand-alone production or in combination with a remote ATS panel required to automatize the generator start & stop during a power failure

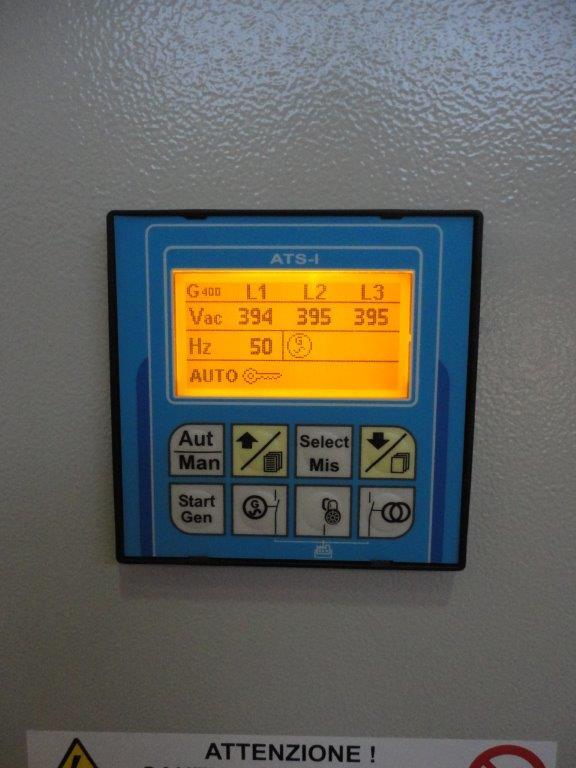

The device is able to control the electrical quantities of the generator, manage its start-up and protect it through the automatic switch

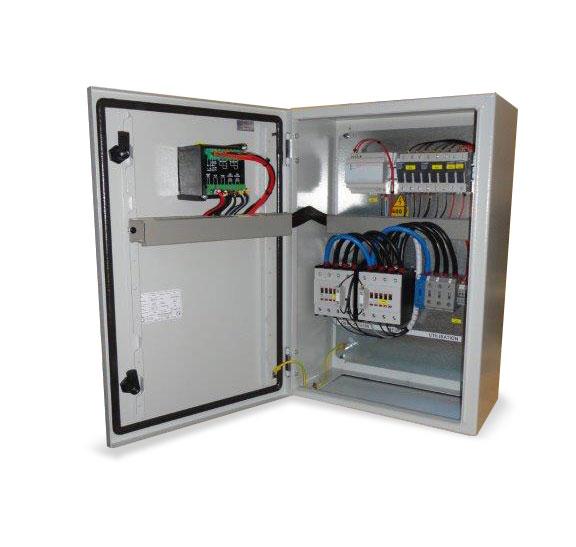

Panels Characteristic:
- Autostarter controller: RGK600, RGK700, RGK800, Be142, Bek3, Intelinano, AMF9, AMF25, DSE7320, DSE7420
- Battery charge
- Automatic circuit breaker “B” curve, 3 or 4 poles
- n°3 TA /5A
- n°4 power terminals up to 125 A
- Start and stop relay from 16 A up to 30 A
- Fuses and fuses holder
- Battery charger
- Pre-heat engine
- Safety switch for user power line
- Aux terminals
Brand Available:
Deep Sea Electronics, ComAp, Bernini Design, GenStart International, Lovato, Telergon, Socomec, Terasaki, ABB, Schneider Electric, Siemens
Installation:
Group board, floor or wall mounted
Optionals
- Fuel pump system
- User grid protection switches
- 3P+N+T e 1P+N+T Users electric socket
- Settable differential
- Input/Output expansions
- GSM
- Remote control system
Standard power 400Volt 50Hz
Electric panels can be produced and sized according to different powers
Contact us for more information about our products
